a fractal kaleidoscope of rounding errors.

Mandala version 0.4, web page version 0.4.2.
This page best viewed in a medium-skinny window.

Your browser does not support Java, so nothing is displayed.

Here, besides the applet, you will find

The Math

In short, it's rotation transformations, modified in a reversible way for integers. The color of each point is based on how many applications of a rotation are required to get back to that same point.

I was writing a lossless audio compression program. Compression puts 16-bit integers through one transformation; there has to be an opposite "expansion" transformation that restores the exact original integers, in order for the process to be lossless. The method I was trying involves the fast Fourier transform (FFT), which takes pairs of values and treats them like ( x, y ) coordinates of points to be rotated around the origin of a coordinate space.

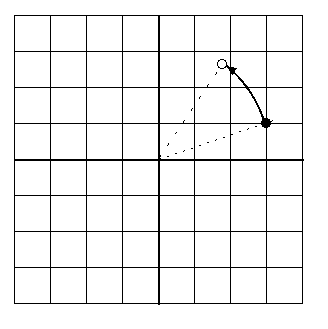

This operation is also used to rotate pictures in graphics software. Rotations around the origin can be done by representing the point as a vector of two elements, and multiplying by a 2 x 2 matrix like this:

      | cos theta     -sin theta |
   p  |                          |  =  q
      | sin theta      cos theta |
where p is the original point, theta is the angle, and q is the new point. This trick is called a "Givens rotation" sometimes. The matrix multiplication above is equivalent to these calculations:
    new x = old x * cos( theta ) - old y * sin( theta )
    new y = old x * sin( theta ) + old y * cos( theta )

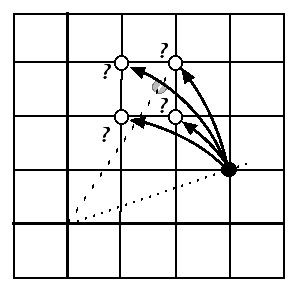

If you are working in integers, or fixed point--or in floating point for that matter--there's a grid of points you can represent exactly, and points that start on the grid don't always end up on the grid after being rotated. So, which grid point do you choose?

In applications like lossless compression, some rounding error is okay as long as the rotation is reversible so that the original data can be reconstructed from the data that went through the transformation. This is the same as requiring that no two points transform to the same point.

There is a technique called "lifting" that makes the rotation reversible by "factoring" the Givens rotation matrix into a product of three matrices, so that the rotation turns into this multiplication:

    |       1          0 |  | 1   sin theta |  |       1          0 |
    |                    |  |               |  |                    |
 p  | (cos theta) - 1    |  |               |  | (cos theta) - 1    | = q
    | ---------------  1 |  |               |  | ---------------  1 |
    |   sin theta        |  | 0       1     |  |   sin theta        |

That's two more matrix multiplications, but actually about the same amount of calculating. To do it exactly, calculating q = ( x2, y2 ) from p = ( x0, y0 ), would go like this:

   x1 = x0 + y0 * ( cos( theta ) - 1 ) / sin( theta )
   y2 = y0 + x1 * sin( theta )
   x2 = x1 + y2 * ( cos( theta ) - 1 ) / sin( theta )
(Here you can actually change x and y in place, but I gave them subscripts to give names to the different states.)

The integer approximation to the same thing goes like this:

   x1 = x0 + round( y0 * ( cos(theta) - 1 ) / sin(theta) )
   y2 = y0 + round( x1 * sin(theta)                      )
   x2 = x1 + round( y2 * ( cos(theta) - 1 ) / sin(theta) )
(where the round() function finds the nearest integer).

The reason the calculation is reversible, even though the rounding causes errors, is this: on each of the three lines above, the expression that's being rounded is calculated from a variable that isn't changing in that line, and added to another variable. To reverse the calculation, just reverse the order of the lines and subtract what was added:

   x1 = x2 - round( y2 * ( cos(theta) - 1 ) / sin(theta) )
   y0 = y2 - round( x1 * sin(theta) )
   x0 = x1 - round( y0 * ( cos(theta) - 1 ) / sin(theta) )

Since the exact same expressions are being calculated and rounded, the exact original values can be reconstructed.

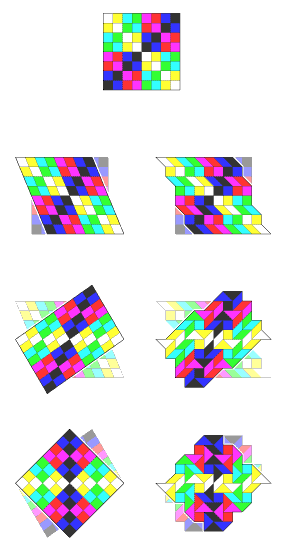

Here's a picture of a grid of points being put through these three transformations. Each of the steps skews the picture. On the left the calculations are exact; on the right, rounded.

As you can see, the points in the integer-math version are approximately where they should be, but they've wandered in various directons, making the grid wrinkly. Thinking about this got me very curious and I wrote a program to produce some of the visualizations on this page.

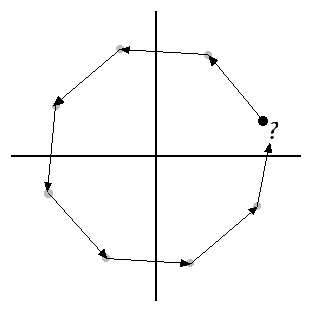

For instance, I wondered: suppose the rotation angle is an even fraction of 360 degrees, say 1/8. Start with a point and do an integer-approximated 45 degree rotation-- eight times. Where do we end up...back at the original point?

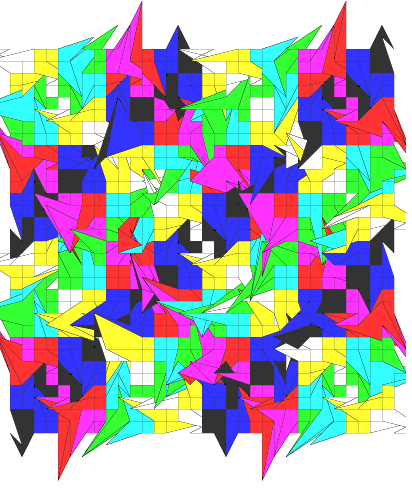

Well, sometimes. Here's a grid after eight 45 degree rotations:

Many of the points seem to have returned to their original places. Others seem to be moving in swirls of some kind, although it's not too clear from this picture. Wanting a better visualization of this led to the Mandala program. Mandala lets you set the numerator and denominator of a fraction of 360 degrees. Then, when you click the "Draw" button, it goes through each point on a grid and counts how many transformations by that angle the point has to be taken through before it gets back to the same place. Then it colors the point --and any other points in the same cycle--based on the length of the cycle. I'm still pretty amazed at the results.

Why the Fractal Patterns?

When you use the denominators 3, 6, 8 and 12, the patterns have a semi-regular, semi-random look to them. (Numerator 4 just makes a blank screen; 5, 7, 9-11 and above 12 give fractal, random-looking patterns.) Why the regularity, why the irregularity, why the shapes?

The basic skew operation on an integer grid produces offsets that are integer multiples of the (usually irrational) slope of the skew, rounded to integers. If you look at the difference between successive offsets, there's a pattern. For instance, if the slope is 1.0, the pattern is very simple:
Offset After rounding Difference
0 0 -
1 1 1
2 2 1
3 3 1
4 4 1

For any slope that's a rational number, the pattern repeats in the same number of steps as the denominator of the (reduced) fraction. For instance, here's the pattern for 3/5:
Offset After rounding Difference
0 0 -
3/5 1 1
6/5 1 0
9/5 2 1
12/5 2 0
15/5 3 1
18/5 4 1
21/5 4 0
24/5 5 1
27/5 5 0
30/5 6 1

For irrational numbers (like most of the sines and cosines of angles used in this program) there is a regular pattern, with exceptions occurring at a larger interval, with exceptions to that pattern occurring at a larger interval, etc. For instance, for sqrt(2)/2:
Offset After rounding Difference
0 0 -
.707 1 1
1.414 1 0
2.121 2 1
2.828 3 1
3.536 4 1
4.243 4 0
4.950 5 1
5.657 6 1
6.364 6 0
7.071 7 1

Here the pattern is:

...which can be grouped:
...10 1110 110 110 1110 110 1110 110 1110 110 110 1110 110 1110...
...which can be grouped:
...10  1110 110 110   1110 110   1110 110   1110 110 110   1110 110   1110...
...and so forth.

The interruptions to the pattern at longer and longer scales roughly correspond to further and further digits of the slope number. In any case, they form a semi-regular fractal pattern of "fault lines" in the skew operation. Looking at a single point in its trip around the origin, it's as if three skew patterns, each rotated through all the multiples of the basic angle, are all overlaid on the grid. The points are like ants going for walks and being nudged one way or another at each step by this kaleidoscopic fractal fault-line pattern. The small-scale patterns in the skew functions result in repeated small walking patterns for the ants; the larger scale patterns of interruptions produce larger round trips for the ants (often composed of pieces of the smaller patterns), and so forth.

These fractal patterns may be related to Penrose tilings (see especially 1/10 Minsky) and/or snowflake crystals (regular crystals forced by the crystal seed into irrational skews?). I haven't figured out why certain denominators produce patterns with no real regularity that I can see. It may be that the regularities are there but only visible at a much larger scale.

Have You Seen This Mandala?

There's something familiar about these things, though. If anyone reading this knows of other work or graphics based on the cycle times of these repeated integerized rotation transforms, please let me know (address below). I know there's an old MIT X screen saver that works something like this, but I remember it doing loopier patterns. That one might be based on "an elegant way to draw almost circles" discovered by Minsky and discussed in HAKMEM. He uses two skews of the same amount, which produces eliptical movement that approaches a circle as the angle of rotation gets small.

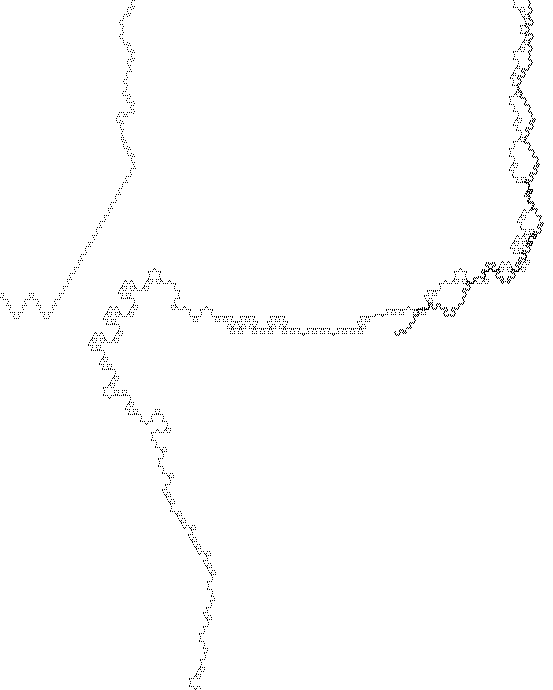

Another question I have is this: given an arbitrary rotation approximation of this kind, are all points on cycles, or are there paths that go out to infinity in both directions? If there are infinite paths, under what conditions? If the paths stayed within a certain distance from the origin, you can see that they would have to cycle. But I've seen paths in Mandala that waver over a pretty wide band...

Using The Program

The basic idea is to pick a numerator and denominator and press "Draw." The program starts with 1/3; if nothing else, try 1/12.

The drawing process should show.

When the applet first runs, there is a pause (long on some browsers) and then the picture appears whole. On the browsers I've tried, though, pressing Draw after that shows the drawing process as it happens. Except when the whole applet disappears, argh. I haven't earned my Java/Swing spill-less mug yet, obviously.

Stretching the window

If you run the program as an application instead of as an applet (see below), you can stretch the window. Once you get it the size you want, click "Draw" again. Sometimes I make the window very very wide by stretching it, then sliding it almost off the left of the screen, then stretching some more, etc.

Pull-down choices for more spice:

Getting The Program

Here is the source code for the main classes and the applet wrapper, and here is the jar file.

The program can be run as an application instead of an applet. To run the jar file, on some operating systems (e.g. Mac OS X) you can just double-click it. On others, when Java is installed the right way and you're in the right directory, you type this at a command prompt:

    java -jar Mandala.jar

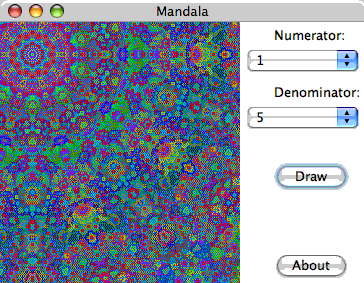

Here is a picture of the applet in action in case it isn't working for you:

Here are a couple pictures of the program in the process of drawing.

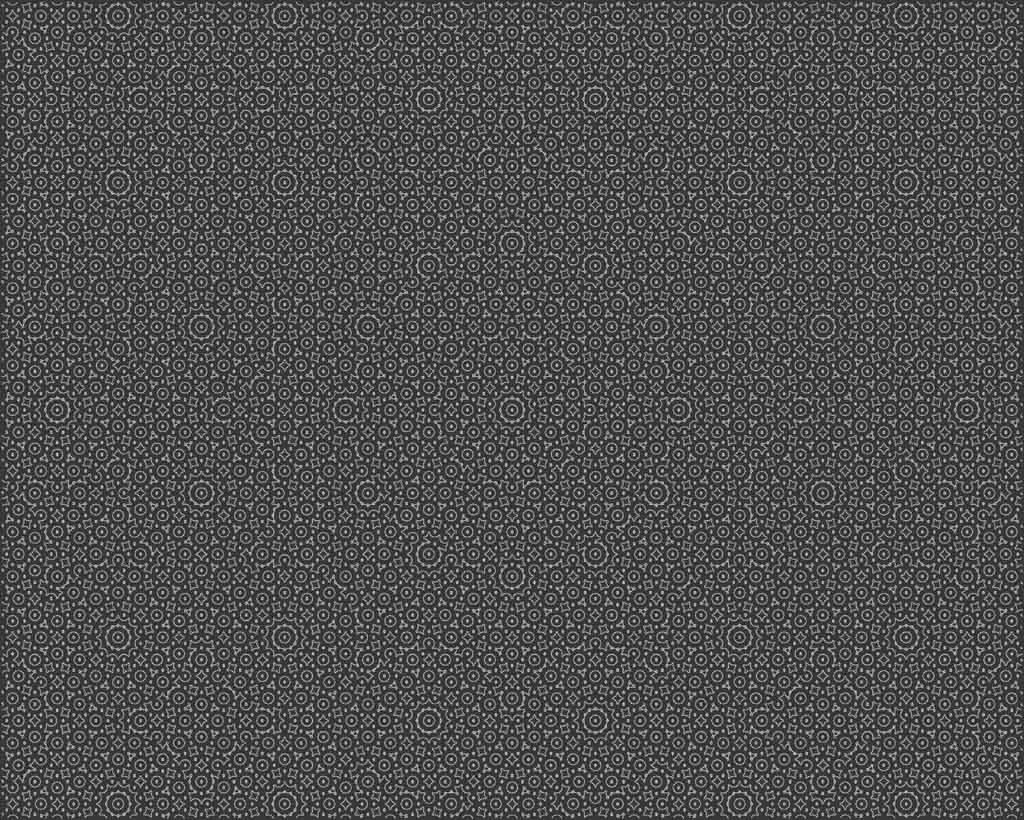

Here's a detail from "Please don't nuke Iran," which is also the basis of the background of this page. It's from a Postscript version of the program, with the fraction set to 1/12. 1024x820 version

Here are some examples of the program run with the Minsky variation and the fraction set at 1/10, which generates what looks like a pentagonal quasicrystal pattern.


Mandala is based on a program called SpaceFillPanel by Frank Ruskey, Johannes Martin and Bette Bultena. I found it looking for a simple example of a Java Swing application that draws graphics (rather than GUI widgets) into a part of a window. The web page for their program is:


0.4.2: Moved pictures to another server. "...modified in a reversible way for integers..."
0.4.1: Minor formatting fix.
0.4: Fixed mushy picture when denominator=12 (the best denomiator!); lightened (de-saturated) one end of the color map; drawing into an Image buffer; added "Skew" setting; expanded the math explanation; added "Why the fractal patterns?"; first attempt to draw at startup.
0.32: Added background, angels.gif, citywall.gif, dont_nuke_iran.jpg; tweaked some writing.
0.31: Tweaked the web page description of integerized rotation.
0.3: Added Minsky variation and Wrap. Added denominators up to 16.
0.2: Integrated Bette Bultena's wrapper that lets it be an applet. Added Wobble.
0.1: First version.

-- Steve Witham <>
